pan head

1. Pan Head: The raised domed head design provides a broad contact area and an aesthetically pleasing appearance. Unlike countersunk screws, it eliminates the need for complex countersunk hole machining, reducing the requirement for high precision in hole matching. It is particularly suitable for connecting softer materials or thin sheets. Its design facilitates quick positioning and tightening, whether manually or with automated tools, effectively enhancing assembly efficiency.

2. Internal Torx: This is the core of the drive system. The star-shaped recess and Torx driver achieve near-perfect multi-angle engagement, providing torque transmission capabilities far superior to traditional Phillips or hex drives. Its advantages include:

   • Unmatched Anti-Slip Performance: Significantly reduces the risk of screw head or driver bit damage during tightening, making it ideal for high-torque fastening applications.

   • Precise Torque Control: Ensures highly consistent preload force for automated assembly lines, which is key to achieving product quality uniformity.

   • Extended Tool Life: Reduces wear caused by slipping, markedly lowering production and maintenance costs.

3. With Washer: This is a key value-added feature of the design. The integrated washer (typically a pre-assembled combination of a flat washer and spring washer) offers multiple benefits:

   • Vibration Resistance and Loosening Prevention: The spring washer provides continuous elastic pressure to the connection system, effectively compensating for preload loss due to vibration and thermal expansion/contraction, preventing screw loosening and greatly enhancing safety.

   • Workpiece Surface Protection: The enlarged bearing area distributes the pressure from the screw head, perfectly preventing indentation or deformation on soft materials (e.g., plastic, aluminum alloy surfaces) and protecting coatings from scratches.

   • Simplified Inventory and Assembly: Combining the screw, washer, and spring washer into one unit eliminates the hassle of sourcing, managing, and installing multiple separate parts, greatly streamlining inventory management and accelerating the assembly process.

4. Flat End: While the flat end design lacks self-drilling capability, its advantage lies in excellent guidance and high-quality thread formation. In pre-drilled holes, it ensures precise positioning, reducing deviation during initial tapping. The threads formed by cutting are clean and strong, resulting in more reliable connections and allowing for repeated disassembly and reassembly.

5. Self-Tapping: This is the core functionality. It enables the screw to tap matching internal threads in pre-drilled holes or soft substrates, eliminating the need for nuts or pre-tapping. This simplifies the production process, reduces the number of parts, and significantly lowers overall costs while improving production efficiency.

(Blackening / Zinc Plating): The Dual Protective Philosophy of Surface Treatment

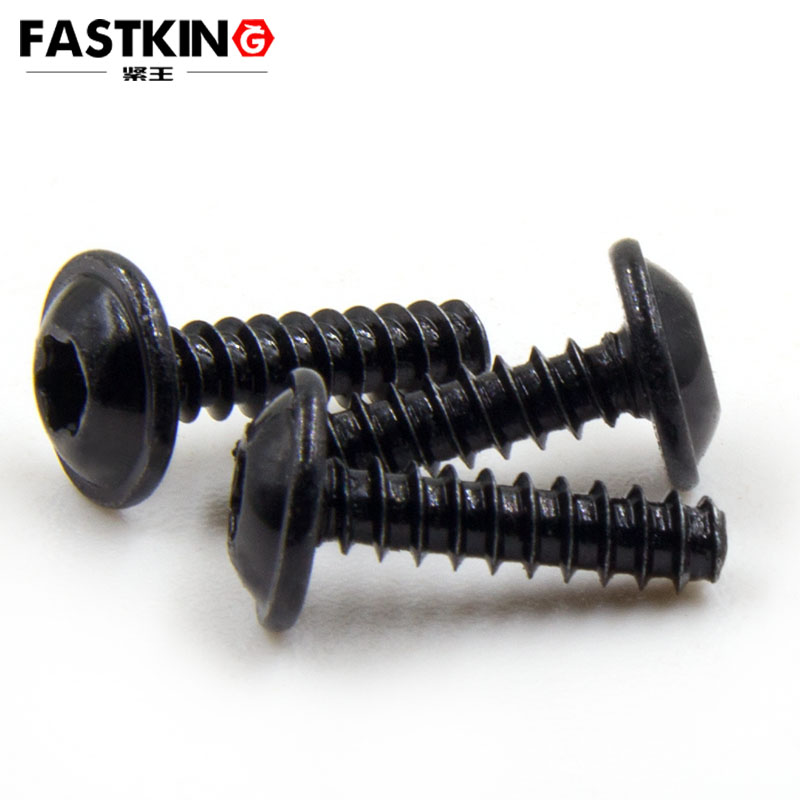

• Blackening: A chemical process that forms a dense black oxide protective film on the screw surface. This film is aesthetically pleasing and provides basic rust resistance. More importantly, it hardly alters the dimensions of the screw, making it highly suitable for precision applications with tight tolerance requirements. It is relatively low-cost and offers fundamental effective protection.

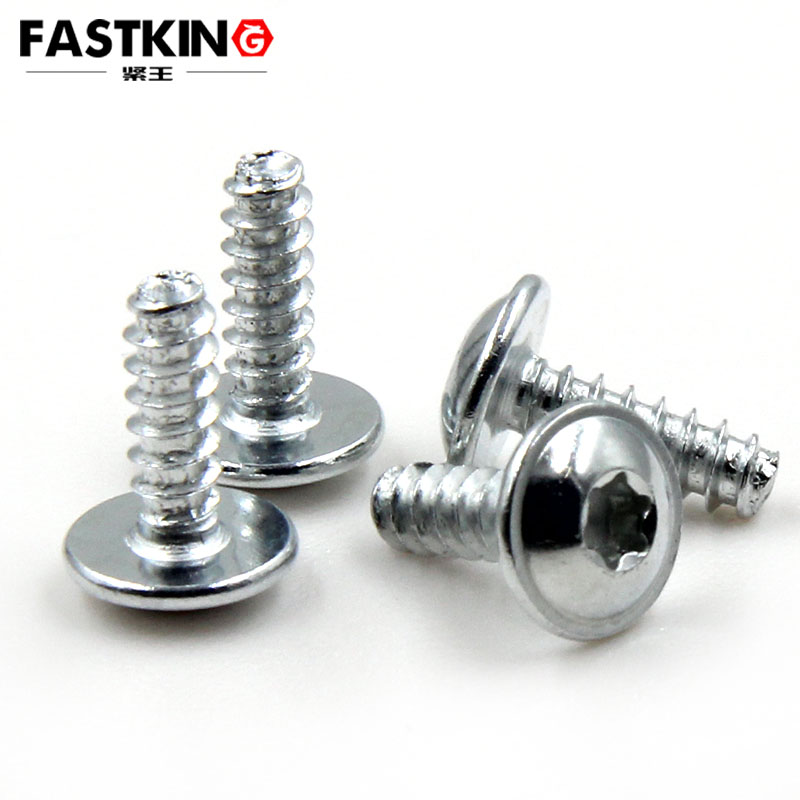

• Zinc Plating: Common types include blue-white zinc and color zinc. This electroplating process deposits a layer of zinc on the screw surface. The zinc layer acts as a physical barrier. Even if the coating is slightly scratched, zinc continues to protect the underlying steel base through the sacrificial anode principle of cathodic protection, offering far superior rust and corrosion resistance compared to blackening. Depending on thickness and requirements (e.g., standard zinc plating, eco-friendly zinc plating), it provides varying levels of protection, from general to harsh environments (e.g., outdoors).

II. Advantage Integration: Building an "All-in-One" Fastening Solution
When the five structural features are combined with the two surface treatment options, this screw demonstrates powerful synergistic effects:

• Maximized Assembly Efficiency: "Self-tapping" eliminates the tapping process, "with washer" saves the installation of additional washers, and "Internal Torx" ensures smooth and precise automated assembly. Together, they achieve ultimate assembly efficiency.

• Optimized Connection Reliability: "Flat end" and "self-tapping" create high-quality threads, the "with washer" structure effectively prevents loosening and resists vibration, and "Internal Torx" guarantees precise preload. This ensures long-term stability and safety of connection points even in vibrating environments.

• Universal Applicability and Protection: Users can choose blackening (economical, precise) or zinc plating (high corrosion resistance) based on the application environment (indoor/outdoor, humid/dry). This makes it suitable for both ordinary electronics and electrical appliance assembly and challenging environments like outdoor cabinets and communication base stations. The combination of the pan head and washer perfectly protects workpiece surfaces, making it applicable to a wide range of materials.

III. Classic Application Scenarios

1. High-End Electronics and Communication Equipment: Servers, routers, appliance controllers, etc. Zinc-plated screws are used for areas requiring grounding and corrosion resistance; blackened screws are used for internal precision structures. The integrated washer prevents loosening and protects delicate exterior paint finishes.

2. Automotive Components and Interiors: Securing wire harnesses, sensors, interior panels, etc. Their anti-vibration characteristics and good corrosion resistance (zinc plating) meet the high-reliability requirements of the automotive industry.

3. Outdoor Facilities and Steel Structure Maintenance: Outdoor electrical boxes, solar brackets, guardrails, signage, etc. The highly anti-corrosive zinc layer effectively resists rain and atmospheric corrosion, ensuring long-term safety.

4. Furniture and Office Equipment: Assembling metal furniture, partitions, height-adjustable desks, etc. Self-tapping capability simplifies installation, and the washer design prevents damage to wooden or thin steel surfaces.

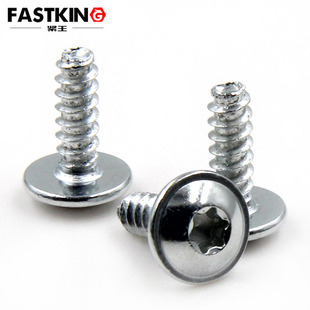

The Pan Head Internal Torx Self-Tapping Screw with Washer and Flat End (Blackened/Zinc Plated) is not just a component; it is a systematic fastening solution born from deep consideration and meticulous design. Through functional integration, it provides a one-stop solution for efficiency, reliability, protection, and cost, reflecting the modern manufacturing industry's relentless pursuit of "lean production" and "value engineering." Choosing such a versatile product undoubtedly adds a solid layer of assurance to the overall quality and lifecycle of the end product.
