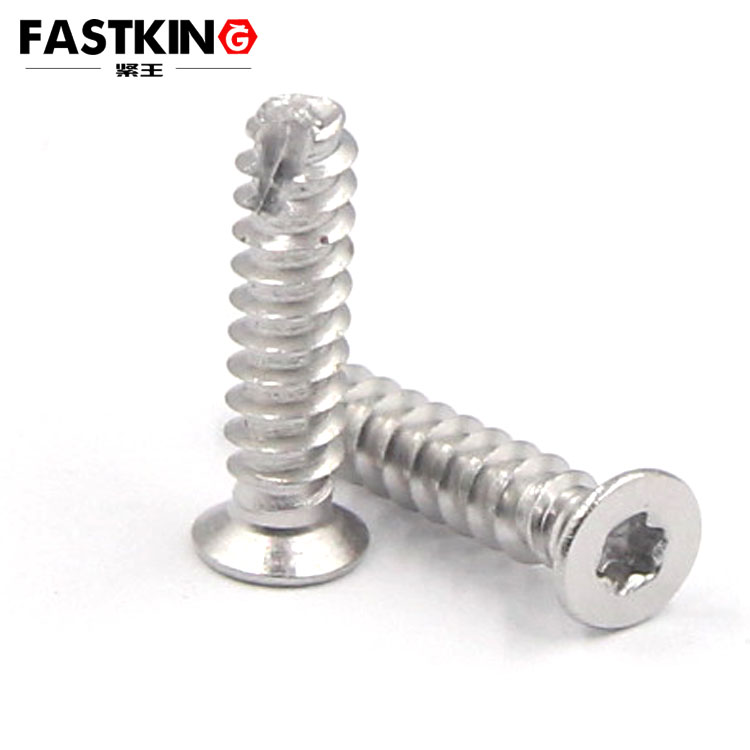

Countersunk inner plum flat tail cutting tail screw

• Higher torque transmission efficiency: Nearly eliminates cam-out, allowing higher tightening torque without damaging the screw head.

• Exceptional precision control: Enables more accurate torque application, ensuring consistent fastening.

• Extended tool life: Reduces wear on drive bits caused by slipping, lowering tool replacement costs.

Flat End:
Unlike common pointed-end screws, the flat end design is typically used in pre-drilled or pre-cast holes. It is not designed for self-tapping but aims to achieve more stable and comprehensive contact with mating parts, thereby providing greater vibration resistance and more uniform load distribution.

Cut Thread:
This refers to the manufacturing process where threads are formed by cutting. Compared to rolled threads, cut threads offer higher dimensional accuracy, clearer thread profiles, and strict tolerance control. This ensures higher precision mating with internal threads (such as nuts or tapped holes), more uniform preload after fastening, and improved joint rigidity.

Synergistic Effect: 1+1+1+1 > 4
When these four features are combined, the Countersunk Internal Torx Flat End Cut Thread Screw delivers powerful synergies that address many pain points of traditional screws.

1. Efficient Tapping and Smooth Assembly
   Although the flat end itself lacks self-tapping capability, the precise threads from the cut process and the strong, slip-free torque delivery of the Internal Torx drive make it excel in tapping operations. When tapping tough materials (e.g., certain aluminum or copper alloys) or blind holes requiring high precision, the clean-cut threads act like precision tools, neatly carving perfect threads without the high internal stress and deformation risks associated with rolled threads. This results in a smoother tapping process, more stable torque, and significantly reduces the risk of tap breakage or stripped threads, thereby improving production efficiency and yield.

2. Precise Fastening and Reliable Connection
   The Internal Torx drive ensures accurate, lossless torque transmission during tightening, allowing operators to confidently use torque wrenches to achieve the designed preload force precisely. This is critical for even force distribution across multiple screw assemblies, preventing connection failures due to under- or over-torquing. The countersunk head ensures a flush and stable connection, while the flat end and cut threads together guarantee precise thread engagement and even load distribution. The entire connection system exhibits excellent resistance to loosening, vibration, and fatigue, making it particularly suitable for high-demand applications such as precision instruments, aerospace, high-end electronics, and more.

3. Exceptional Reusability and Maintainability
   Thanks to the highly damage-resistant Internal Torx drive, the screw head remains in excellent condition even after multiple installations and removals, facilitating maintenance and replacement. The high-precision cut threads retain their form better after repeated use, showing less wear compared to rolled threads, thus offering a longer service life and superior reusability.
